Part Number
|
DS-2DF5220S-DE4/W
|
|
•
Description
|

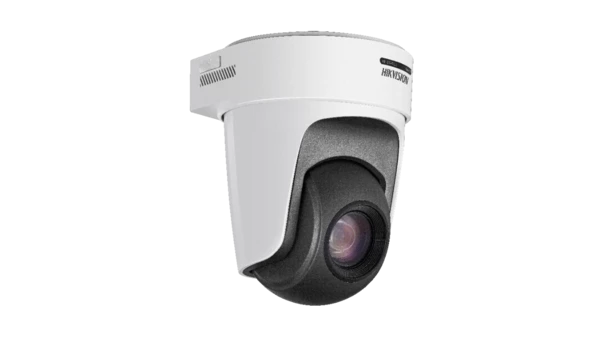

DS-2DF5220S-DE4/W Hikvision 2MP 20X PTZ Dmoe Camera
- Lens
- FOV58.3-3.2 degree (Wide-Tele)
- Zoom SpeedApprox.2.7s(Optical Wide-Tele)
- Working Distance10-1500mm(Wide-Tele)
- Aperture RangeF1.6~F3.5
- Focal Length4.7-94mm, 20x
- Network
- Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP,
ICMP, DHCP, PPPoE
- APIOpen-ended API, support ONVIF, PSIA, CGI and Genetec
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users,3 Levels: Administrator, Operator and User
- Security MeasuresUser authentication (ID and PW); Host authentication (MAC address); IP address filtering
- Interface
- BNC1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
- Alarm Output1-ch alarm output
- Alarm Input2-ch alarm input
- Audio Input1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
- Audio Output1 Audio output interface, line level, impedance: 600Ω
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- Storage
Micro SD/SDHC/SDXC card local storage, Support up to 8 NAS storage; Edge recording(transmit the
videos from SD card to the NAS after network resumed)
- Camera Module
- AGCAuto/Manual
- Image Sensor1/3”Progressive Scan CMOS
- Min. Illumination
F1.6, 1/1 sec, 50 IRE, AGC On: Color: 0.02 lux, B/W : 0.002 lux
F1.6, 1/30 sec, 50 IRE, AGC On: Color:0.3 lux, B/W : 0.02 lux
- Day & NightIR cut filter
- Digital Zoom16×
- Privacy Mask24 privacy masks programmable; optional multiple colors and mosaics
- Focus ModeAuto/Semi-automatic/Manual
- WDRDigital WDR
- BLCYes
- HLCYes
- PTZ
- Movement Range (Pan)360° endless
- Pan SpeedConfigurable, from 0.1°/s to 150°/s, Preset Speed: 270°/s
- Movement Range (Tilt)From -30° to 90°
- Tilt SpeedConfigurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans, record time over 10 minutes for each scan
- Power-Off MemoryYes
- Park ActionPreset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan
- Smart Features
- Smart Tracking
Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
Smart tracking when patrol between multiple scenarios
- ROISupport 24 areas with adjustable levels
- General
- DimensionsΦ176.6(mm)×202.7(mm)
- 1.8kg
- Power12VDC, PoE+, Max. 24W
- Working Temperature-10° C ~ 50° C (-14° F ~ 122° F)
- Working Humidity≤ 90%
