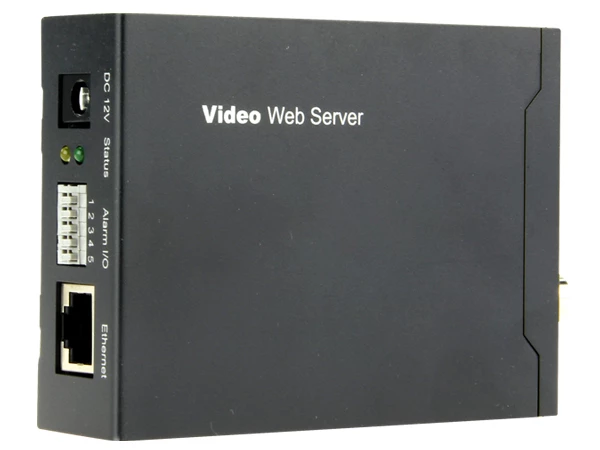

This video server is used to turn your analog camera into an IP camera and can be recorded / managed on AVTECH NVR or CMS system. It also supports RS485 and Pelco-D protocol for external device connection to extend the functionality and flexibility of your camera. Users can easily upgrade their existing CCTV system into IP system.
Video Input |
1 channel for analog & digital products,1.0 Vp-p 75 composite, BNC |
Audio |
1 channel audio input / 1 channel audio output |
Alarm I/O |
1 input / 1 output |
Watch dog |
Yes |
RS-485 Port |
Yes |
Network Interface |
Ethernet (10/100 Base-T) |
Image Compression |
H.264 / MPEG4 / JPEG |
Video Adjustment |
Brightness, Contrast, Saturation and Hue |
Supported Protocols |
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour, UPnP, DNS, UDP |
Resolution |
704x480, 352x240 (NTSC) / 704x576, 352x288 (PAL) |
Frame Rate |
NTSC: 30, PAL: 25 |
Motion Trigger Recording |
Yes |
Motion Detection |
3 adjustable factors |
Trigger & Action |
Triggered by GPIO Input or Motion detection,
Action: E-mail video/images or video/images upload to FTP site |
ONVIF |
Yes |
Mobile Phone support |
Yes |
Mac PC support |
Yes |
Multiple Video streaming |
Yes (H.264 / MPEG4 / MJPEG) |
Number of Online Users |
10 |
Security |
Multiple user access levels with password, IP address filtering |
Speed Dome Control |
Yes (AVTECH / PELCO-D / PELCO-P) |
De-blocking |
Yes |
De-interlace |
Yes |
Security |
Password protection |
Power Source |
DC12 V/1A |
Current consumption (± 10mm) |
About 0.6A |
Operating Temperature |
0℃~40℃ |
Dimensions (mm)** |
118.6 x 75 x 28.6 |
|
