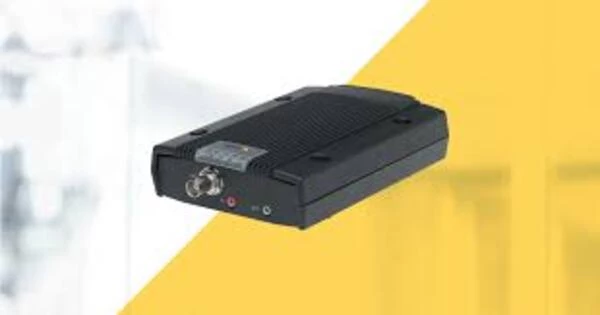

AXIS Q7411 Video Encoder

AXIS Q7411 is a powerful, full-featured video encoder solution offering 60/50 (NTSC/PAL) frames per second. The support for 60/50 fps provides smooth video in high motion scenes. This also enables the user to more closely follow details and changes in the monitored area, which is of major importance in forensic work.

AXIS Q7411 allows PTZ control over the coaxial cable, resulting in significant installation savings. In addition, the video encoder provides standard support for PTZ cameras using the serial ports.

The video encoder can deliver multiple, individually configurable video streams simultaneously at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL).

AXIS Q7411 offers the highly efficient H.264 video compression format both in Base and Main profile, with significant savings in bandwidth and storage. Motion JPEG is also supported for increased flexibility.

AXIS Q7411 offers intelligent capabilities such as motion detection, active tampering alarm and audio detection. Other features include two-way audio and microSD/microSDHC memory.

Video Video compression H.264 (MPEG-4 Part 10/AVC) Baseline and Main profile Motion JPEG Resolution 176x120 to 720x576 Frame rate H.264: 60/50 (NTSC/PAL) fps in all resolutions Motion JPEG: 60/50 (NTSC/PAL) fps in all resolutions Video streaming Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/CBR H.264 Pan/Tilt/Zoom Wide range of analog PTZ cameras supported (drivers available for download at www.axis.com) Supports Windows compatible joysticks Compatible with Coaxitron® by Pelco 100 preset/camera, Guard tour, PTZ control queue Image settings Compression, color, brightness, contrast, aspect ratio correction, text and image overlay, mirroring of images, privacy mask, enhanced deinterlace filter, video termination, anti-aliasing, temporal noise filtering Rotation: 90°, 180°, 270° Audio Audio streaming Two-way, full duplex and half duplex Audio compression AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Configurable bit rate Audio input/output External microphone or line input and line output Network Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log Supported protocols IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS System integration Application Programming Interface Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at www.axis.com AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF® Profile S and ONVIF® Profile G, specification at www.onvif.org Analytics AXIS Video Motion Detection 4, active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications, see www.axis.com/acap Event triggers Analytics, external input, video loss, audio detection Event actions Overlay text, video and audio recording to edge storage, preand post-alarm video buffering, external output activation, send SNMP trap, play audio clip, status LED PTZ: PTZ preset, start/stop guard tour File upload via FTP, SFTP, HTTP, HTTPS network share and email Notification via email, HTTP, HTTPS and TCP Data streaming Event data General Casing Aluminum casing Casing color: Black - NCS S 9000-N Memory 256 MB RAM, 128 MB Flash Power Power over Ethernet IEEE 802.3af Class 2 8–28 V DC input, max. 5.3 W Connectors Analog composite video BNC input RJ45 10BASE-T/100BASE-TX PoE Terminal block for four configurable external inputs/outputs Terminal block for RS485/RS422 (full duplex) 3.5 mm jack for microphone or line input (mono) 3.5 mm jack for audio output (mono) Storage Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see www.axis.com Operating conditions 0 °C to 60 °C (32 °F to 140 °F), 0 °C to 50 °C (32 °F to 122 °F) with included Power supply Humidity 10-85% RH (non-condensing) Approvals EN 55022 Class B, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1 Weight 520 g (1.1 lb) Included accessories Installation guide, Windows decoder 1-user license, mounting and connector kits, power supply Video management software AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners available on www.axis.com/techsup/software Warranty Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty a. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/), and cryptographic software written by Eric Young (eay@cryptsoft.com). Environmental responsibility: axis.com/environmental-responsibility
