Part Number
|
HLC-1NAD/360
|
|
•
Description
|

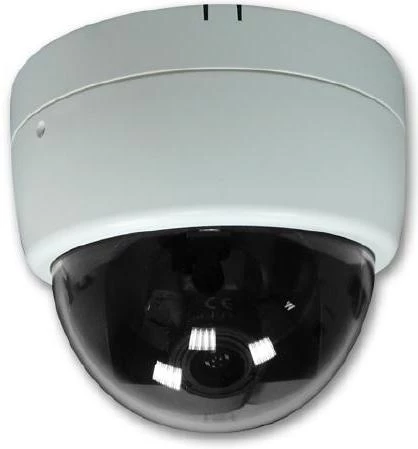

Hunt HLC-1NAD 2-Megapixel IP Camera
‧ High definition 720P @ 30 FPS
‧ Video out
‧ 2-Megapixel CMOS sensor
‧ Power over Ethernet
‧ 3-Axis bracket adjustments
‧ 15M built-in IR LED
‧ Mechanism IR Cut filter
‧ H.264/ JPEG/ MPEG4 compression
‧ SD card backup
‧ 2-way audio
‧ Support iPhone/ Android/ Symbian/ Blackberry
‧ SDK for Software Integration
‧ Free bundle 36 ch recording software
‧ Compatible with ONVIF standard
HD IP Camera Use
|
|
| CPU |
ARM 9, 32 bit RISC |
| RAM |
256MB |
| Flash |
16MB |
| Image Sensor |
1/3.2” CMOS (2 Megapixels) |
| Sensitivity |
0 lux (IR on) |
| Support DC IRIS |
Yes |
| Lens Type |
Vari-focal 2.7~9mm, F1.2 |
| Angle of View |
30.4°~101° (horizontal)
23°~75° (vertical) |
| ICR |
Mechanism IR cut Filter (Optional) |
| LED |
Built-in 18 IR LED (optional) |
| IR Distance-15M (Optional) |
| I/O |
1 in/ 1 Relay Out |
| Video Out |
1.0Vp-p, 75?, BNC |
| Audio |
G.711 audio compression
Interface: Mic in
Support 2-way audio |
| Power |
Power 12V DC
Power Consumption: IR on 6.2W IR off 4.7W
PoE Class 0 (IEEE802.3af) , optional /
Power Consumption: IR on 8.8W, IR off 6.7W |
| 3-Axis Bracket Adjustment Angle |
Pan: 172°
Tilt 30°~90°
Rotation 172° |
| Operating Temperature |
-10°C~40°C |
| Dimensions |
132mm(Ø) x 108mm(H) |
| weight |
680g |
|
Network
|
| Ethernet |
10/ 100 Base-T |
| Network Protocol |
HTTP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA |
|
System
|
| Video Resolution |
1600x1200, 1280x1024, 1280x960, 1280x720, 800x600,640x480, 320x240, 176x144 |
| Video Adjust |
Brightness, Contrast, Sharpness, BLC, Night Mode |
| Triple Streaming |
Yes |
| Image Snapshot |
Yes |
| Full Screen Monitoring |
Yes |
| Privacy Mask |
Yes, 3 different areas |
| Compression Format |
H.264/ JPEG/ MPEG4 (3GPP only) |
| Video Bitrates Adjust |
CBR, VBR |
| Motion Detection |
Yes, 3 different areas |
| Triggered Action |
Mail, FTP, Save to SD card, Relay, Samba |
| Pre/ Post Alarm |
Yes, configurable |
| Security |
Password protection |
| Firmware Upgrade |
HTTP mode, can be upgraded remotely |
| Simultaneous Connection |
Up to 10 |
|
SD card management
|
| Recording Trigger |
Motion Detection, IP check, Network break down (wire only),schedule, Relay |
| Video Format |
AVI, JPEG |
| Video Playback |
Yes |
| Delete Files |
Yes |
|
Client system requirements
|
| OS |
Windows 2000, XP, 2003, Microsoft IE 6.0 or above |
| Hardware |
| Suggested |
Intel Dual Core 1.66G,RAM: 1024MB, Graphic card: 128MB |
| Minimum |
Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB |
|
|
•
