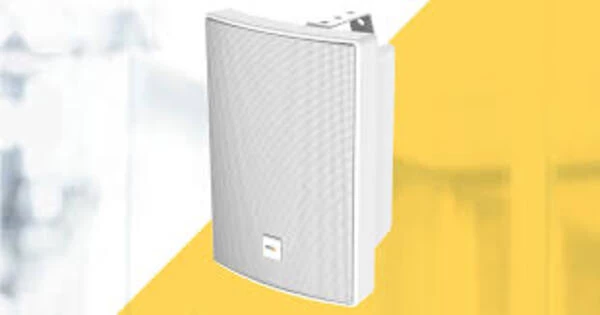

Axis AXS-C1004-E-W Network Cabinet Speaker

Part Number
AXS-C1004-E-W
Description

Axis AXS-C1004-E-W Network Cabinet Speaker

AXIS C1004-E Network Cabinet Speaker makes audio smart and easy, and opens up a wealth of new possibilities. The speaker system is perfect for background music and for live and scheduled announcements in retail stores. AXIS C1004-E comes in a choice of black or white and can be mounted horizontally or vertically. Splash-proof construction means it can be installed under the eaves, where it's not directly exposed to rain.

Models AXIS C1004-E Network Cabinet Speaker White AXIS C1004-E Network Cabinet Speaker Black Audio Audio streaming One-way/two-waya , mono Audio compression AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz. Audio input/output Built-in microphone (can be disabled) Built-in microphone specification 50 Hz - 16 kHz Speaker Enclosure Two-way bass-reflex type Speaker component: 12 cm (4.72 in) dynamic cone speaker, 2.5 cm (0.98 in) balanced dome tweeter Max sound pressure level 96 dB Frequency response 60 Hz - 20 kHz Coverage pattern 130° horizontal by 100° vertical Amplifier Amplifier description Built-in 6 W Class D amplifier Network Security Password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, Digest authentication, User access log, Centralized Certificate Management Supported protocols IPv4/v6c , HTTP, HTTPSb , SSL/TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk) System integration Music streaming Music playback through AXIS Audio Player. Offline streaming from SD card and online streaming support. Voice announcement Up to 50 pre-recorded voice announcements through AXIS Audio Player. Voice announcement through built-in SIP support for connection to any IP telephone /VoiP system and VAPIX support. Application Programming Interface Open API for software integration, including VAPIX®, AXIS Video Hosting System (AVHS) with One-click Connection, AXIS Camera Application Platform (ACAP). VoIP Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems. Peer to peer or integrated with SIP/PBX. Tested with: SIP client such as Cisco, Bria and Grandstream and PBX suppliers such as Cisco and Asterisk. Supported SIP features: secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN) Supported codecs: PCMU, PCMA, opus, L16/16000, L16/8000, speex/8000, speex/16000, G.726-32 Audio synchronization Built-in audio synchronizationc for up to 50 speakers with unicast and hundreds of speakers with multicast. No additional speaker management software or hardware required. Intelligent audio Auto Speaker Test (verification via built-in microphone) Event triggers Virtual inputs, AXIS Camera Application Platform (ACAP) Call: DTMF, State changes Event actions Play audio clip, send SNMP trap, send Auto Speaker Test, status LED File upload via HTTP, network share and email Notification via email, HTTP, HTTPS and TCP Built-in installation aids Test tone verification and identification General Casing IP45- and NEMA 3R-rated Plastic and metal casing Colors: White NCS S 1002-B; black For repainting instructions and impact on warranty, contact your Axis partner. Memory 256 MB RAM, 256 MB Flash Power Power over Ethernet (PoE) IEEE 802.3af/802.3af Type 1 Class 3 ( max 12.95 W) Connectors RJ45 10BASE-T/100BASE-TX PoE Storage Support for microSD/microSDHC/microSDXC card Max. size 64 GB For SD card recommendations see www.axis.com Reliability Designed for 24/7 operation. Operating conditions –20 °C to 50 °C (4 °F to 122 °F) Humidity 10–85% RH (condensing) Storage conditions -40 °C to 65 °C (-40 °F to 149 °F) Approvals EMC EN 55022 Class A, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KN24, KCC KN32 Class A, KN35 Safety IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, CNS 13438 Environment IEC/EN 60529 IP45, IEC/EN 62262 IK10, NEMA 250 Type 3R, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14 Dimensions H x D x W (with bracket): 290 x 200 x 196 mm (11.4 x 7.9 x 7.7 in) Weight 3.0 kg (6.61 lb) Included accessories Installation Guide, AVHS authentication key, AXIS Camera Station license key, cable shoe, bracket with screws and washers, AXIS Connector Guard A Optional accessories Safety wire kit For more accessories, see www.axis.com Video management software AXIS Camera Station, Video management software from Axis’ Application Development Partners available on www.axis.com/techsup/software Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese Warranty Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty a. This product supports two-way audio for sending audio to the speaker and receiving audio from the microphone. The product does not support two-way communication for conversations with speaker operators. b. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric Young (eay@cryptsoft.com). c. Audio synchronization with IPv4 only. Environmental responsibility: axis.com/environmental-responsibility www.axis.com ©2016 - 2019 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, and VAPIX are registered trademarks or trademark

Remarks
Price:
Please enquire
Qty:


Add to cart Direct checkout + Add to wish list
PA System   Axis
