AR-757H Soyal
AR-757H
Mode No.: M4
RF Frequency 125KHz / 13.56MHz
User Capacity: 1,024
Event Log :3,000
Power Requirement: 9-24VDC
Power Consumption: < 3W
Communication Interface: RS-485
Baud Rate: 9600 bps (N, 8, 1)
Environment: -20 ℃ to +75 ℃
DI Input: Egress Button / Door Sensor
Compliance: ISO14443A (13.56M only)
Door Relay Time: 0-600 sec.
Alarm Relay Time: 0-600sec.
Tamper Resist. Switch: Limit Switch (Form C)
Aux. WG Port WG 26/34, ABA-II
Anti-pass Back: Yes
Lift Control: Yes
(32 stops, 1024 users)
Editing Interface: Controller
Proximity Reading Range: 10-18cm (125K) / 3-8cm (13.56M)
Serial Out :TTL (4800bps, N, 8, 1) (shared with alarm relay)
Indicator: 3 LEDs and a beeper
Door Bell: Yes
Color: Dark Pearl Gray / Silver
Dimensions: (mm) 123(H)*88(W)*30(D)
Weight: (g) 155 ± 10
Housing Material: ABS
Access Mode: Card Only
Card or PIN
Card + PIN
(Designs and specifications are subject to change without notice.)

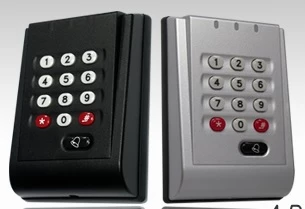

The Photos is only for reference.
