KPC133E 1/3 IR Color CCD (520TVL)

Pick up Element :1/3" H.R. color CCD image sensor
Number of Pixel : 771(H) x 492(V) <NTSC> / 753(H) x 582(V) <PAL>
Resolution :520 TV Lines
Min. Illumination:  0.1 Lux / F2.0, 0Lux (IR ON)
IR LED: 21 units
Effective Range:  Up to 15 Meters
S/N Ratio:  More than 48dB (AGC OFF)
Electronic Shutter: 1/60 (1/50) to 1/100,000 sec.
Lens: f3.6mm / F2.0
Lens Angle: 92.6°
IRIS Mode : AES
White Balance:  ATW
Video Output : 1.0 Vp-p composite, 75Ω
Power Source (±10%):  DC12V
Current Consumption (±10%): 90mA (IR OFF), 280mA (IR ON)
Dimensions (mm)** :94.1(Θ) x 70.7(H)

For CCTV Use

(Designs and specifications are subject to change without notice.)

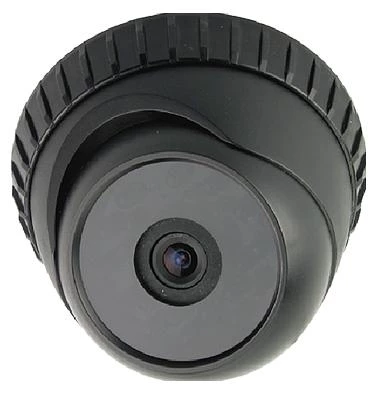

The Photos is only for reference.
