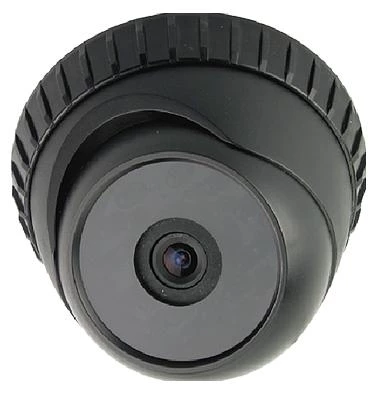

KPC133D IR Camera

Pick up Element :1/3" Color CCD image sensor
Number of Pixel: 512（H） x 492（V） <NTSC> / 512（H） x 582（V） <PAL>
Resolution: 420 TVL
Min. Illumination: 0.05 Lux / F 2.0，0 Lux（IR ON）
IR LED: 21 units
Effective Range: Up to 15 meters
S/N Ratio :More than 48 dB（AGC off）
Electronic Shutter: 1 / 60（1 / 50）to 1 / 100,000 sec.
Lens: f3.6mm / F2.0
Lens Angle: 92.6°
IRIS Mode: AES
White Balance: ATW
Video Output: 1.0Vp-p composite, 75Ω
Power Source: (±10%) DC12V
Current Consumption (±10%): 90 mA（IR OFF）,210 mA（IR ON）
Dimensions (mm) :94（Ø）× 71（H）

For CCTV Use

(Designs and specifications are subject to change without notice.)
The Photos is only for reference.
