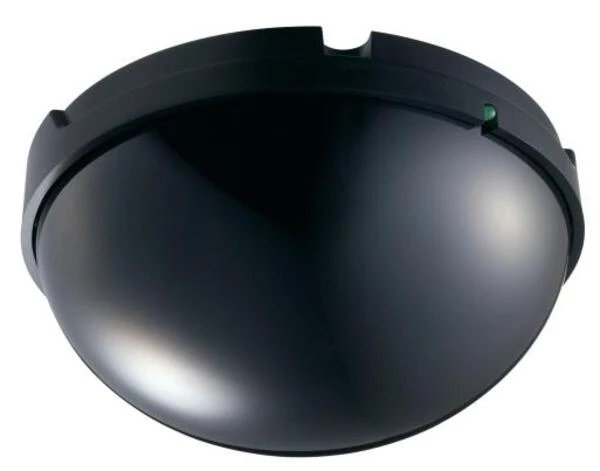

Toa IR-510R IR Ceiling Mount Receiver
The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.
| Power Source |
24 V DC (supplied from the IR-702T) |
| Current Consumption |
Max. 60 mA |
Infrared Detector
| Wavelength |
870 nm |
| Carrier Frequency |
Channel A: 3.100 MHz
Channel B: 3.350 MHz |
| Communication Area |
Approx. 7 m (22.97 ft) in radius from the point underneath the unit
(Ceiling height: 2.5 - 3.0 m (8.2 - 9.84 ft), in a space without any obstacle) |
| Connection Terminal |
75 Ω, BNC jack |
| Operating Temperature |
0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity |
30 % to 85 %RH (no condensation) |
| Finish |
Filter section: Polycarbonate, optical cut filter
Base: ABS resin, black |
| Dimensions |
φ120 × 71.3 (H) mm (φ4.72" × 2.81") |
| Weight |
205 g (0.45 lb) (unit only) |
| Accessory |
Mounting bracket …1 |
