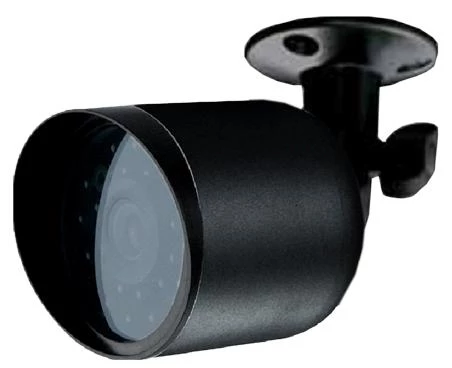

KPC136ET IR CCD Camera (Water Proof)
Pick up Element: 1/3" H.R. color CCD image sensor
Number of Pixel: 771(H) x 492(V) <NTSC> / 753(H) x 582(V) <PAL>
Resolution: 520 TVL
Min. Illumination: 0.1Lux / F2.0, 0Lux (IR ON)
IR LED: 21 units
Effective Range: Up to 15 Meters
S/N Ratio : More than 48dB (AGC off)
Electronic Shutter: 1/60 (1/50) to 1/100,000 sec.
Lens: f3.6mm / F2.0
Lens Angle: 92.6°
IRIS Mode: AES
White Balance: ATW
Video Output: 1.0 Vp-p composite, 75Ω
Power Source (±10%): DC12V
Current Consumption (±10%): 90mA (IR OFF), 280mA (IR ON)
Dimensions (mm): 116.13(L) x 60(W) x 79.58(H)
For CCTV Use
(Designs and specifications are subject to change without notice.)
The Photos is only for reference.
