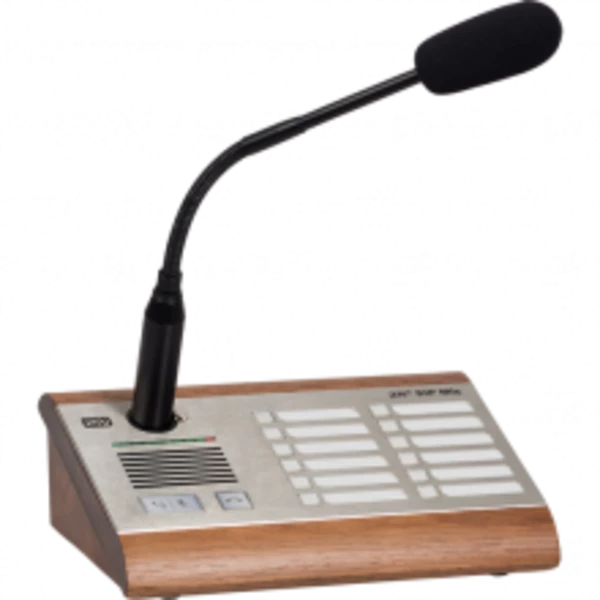

Axis AXS-2N SIP MIC
- All-in-one microphone console
- 12 configurable buttons for 12 zones
- Pre-recorded or live announcements
- Quick installation with just one network cable (PoE)
- Future-proof with openness and integration
AXIS 2N SIP Mic is an all-in-one network microphone console that give you a smart and easy way to turn your Axis network speakers into a complete public address system.
Audio stream SIP2.0, RTP multicast, VAPIX® Audio codecs G.711u, G.722 Speakers 2 built-in, stereo, power output 2x1 W Interfaces Logical inputs 2, galvanically separated, sensitive to contact or voltage from 5 to 48 V Relay output 1, galvanically isolated, NO and NC contact, max load 48 V, 1 A Headphone output 3.5 mm jack, stereo, power output 2x30 mW, min. load impedance of 16 Ohm, DR. 101 dB, THD+N -85 dB Primary microphone input symmetric, XLR, integrated phantom power supply 24 V, DR 88 dB, THD+N -82 dB Headset microphone input 3.5 mm jack, integrated power supply for electret microphones, DR 84 dB, THD+N -78 dB Line input 3.5 mm jack, mono or stereo non-symmetric stereo, DR 93 dB, THD+N -82 dB Power supply 12 to 32 V, power draw max. 1 A PoE to 802.3af standard Dimensions 209 x 65 x 143 mm Operating temperature temperature range 0-40°C Buttons and labels Double button 28mm x 14mm Large button 14mm x 14mm Small button 9mm x 9mm
