Part Number
|
AXS-C8210
|
|
•
Description
|

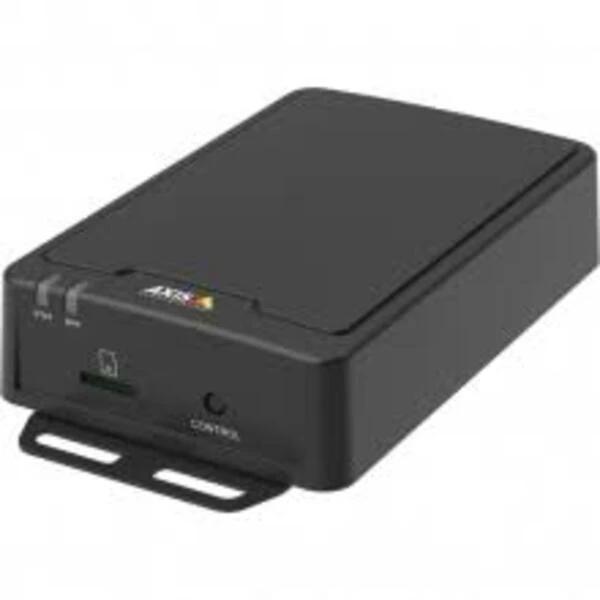

Axis AXS-C8210
- 15W power amplifier with built-in DSP
- Use with one or multiple speakers
- System health monitoring
- One cable for power and connectivity (PoE)
- Open standards for easy integration
- Audio Maximum output power 6 W with PoE Class 3, 15 W with PoE Class 4 Supported speaker impedance 4-16 Ω Frequency response 20 Hz - 20 kHz Audio compression AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to 320 kbps. Constant and variable bit rate. Sampling rate from 8 kHz up to 48 kHz. Audio streaming One-way/two-waya , mono Network Security Password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, Digest authentication, User access log, Centralized Certificate Management Supported protocols IPv4/v6c , HTTP, HTTPSb , SSL/TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, SIP (Cisco, Avaya, Asterisk) System integration Music streaming Music playback through AXIS Audio Player. Offline streaming from SD card, online streaming support with failover function. Voice announcement Pre-recorded voice announcements through AXIS Audio Player. Voice announcement through built-in SIP support for connection to any IP telephone/VoIP system and VAPIX support. Application Programming Interface Open API for software integration, including VAPIX®, AXIS Video Hosting System (AVHS) with One-click Connection, AXIS Camera Application Platform (ACAP) Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. Tested with various SIP clients such as Cisco, Bria and Grandstream. Tested with various PBX suppliers such as Cisco and Asterisk. Audio synchronization Built-in audio synchronization for up to 30 speakers with unicast and hundreds of speakers with multicast. No additional speaker management software or hardware required. Intelligent audio Speaker impedance detection and over current protection Event triggers Call, virtual inputs, external input, AXIS Camera Application Platform (ACAP) Event actions Play audio clip, send SNMP trap, status LED File upload via HTTP, network share and email Notification via email, HTTP, HTTPS and TCP External output activation Built-in installation aids Test verification and identification General Casing IP20-rated Metal casing Color: Black NCS S 9000–N Environment PVC free Memory 512 MB RAM, 512 MB Flash Power Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 3 (max 12.95 W), IEEE 802.3at Type 2 Class 4 (max 25 W) Connectors RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm terminal block for two configurable inputs/outputs Audio: 3 pole 3.5 mm line/mic-in (2.2 V rms), 2–pin 5.08 mm speaker-out Storage Support for microSD/microSDHC/microSDXC card Max. size 128 GB For SD card recommendations see www.axis.com Reliability Designed for 24/7 operation. Operating conditions -20 °C to 50 °C (4 °F to 122 °F) Humidity 10–85% RH (non-condensing) Storage conditions -40 °C to 65 °C (-40 °F to 149 °F) Approvals EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A Safety IEC/EN/UL 62368-1 Environment IEC/EN 60529 IP20, UL2043 Plenum rated, NEMA 250 Type 1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27 Dimensions 140 x 75 x 29 mm (5 1/2 x 2 15/16 x 1 1/8 in) Weight 257 g (0.57 lb) Included accessories Installation Guide, AVHS authentication key, AXIS Camera Station license key, I/O connector, speaker connector, velcro, cable ties Optional accessories AXIS Device Microphone A For more accessories, see www.axis.com Management software AXIS Audio Manager C7050, AXIS Camera Station, video management software from Axis’ Application Development Partners available on www.axis.com/support/downloads Languages English Warranty Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty a. This product supports two-way audio, audio in and audio out. The product does not support two-way communication for conversations. b. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (www.openssl.org), and cryptographic software written by Eric Young (eay@cryptsoft.com). c. Audio synchronization with IPv4 only. Environmental responsibility: axis.com/environmental-responsibility
AXIS C8210 Network Audio Amplifier is a compact and smart migration tool that transforms any passive speaker into a network speaker with all the benefits of network audio. So all your speakers, regardless of brand or design, can feature the same functionality as Axis network audio speakers. AXIS C8210 is ideal for playing background music and live and scheduled announcements in educational facilities and retail stores.
|
|
•
