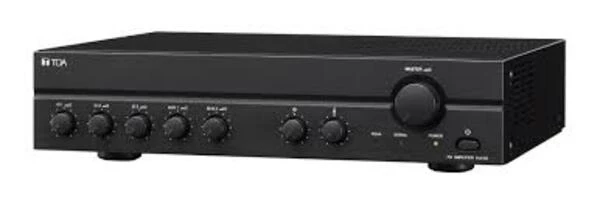

Toa A-2060 60W amplifier
The A-2060 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
- * 0 dB = 1 V
| Power Source |
220 - 240 V AC, or 24 V DC |
| Rated Output |
60 W |
| Power Consumption |
72 W (EN60065), 4 A (DC operation at rated output) |
| Frequency Response |
50 - 20,000 Hz (±3 dB) |
| Distortion |
1% or less at 1 kHz, 1/3 rated power |
| Input |
MIC 1 - 3: -60 dB*, 600 Ω, balanced, equivalent to XLR-3-31 type
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Mute: Contact screw terminal (for MIC 1) |
| Output |
Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
High impedance: 170 Ω (100 V), 83 Ω (70 V)
Low impedance: 4 Ω (15.5 V)
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack |
| Phantom Power |
DC +21 V (MIC 1) |
| S/N Ratio |
60 dB or more |
| Tone Control |
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz |
| Muting |
MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal
contact. |
| Finish |
Panel: ABS resin, black
Case: Steel plate, black |
| Dimensions |
420 (W) × 100.9 (H) × 280.3 (D) mm (16.54" × 3.97" × 11.04") |
| Weight |
7 kg (15.43 lb) |
