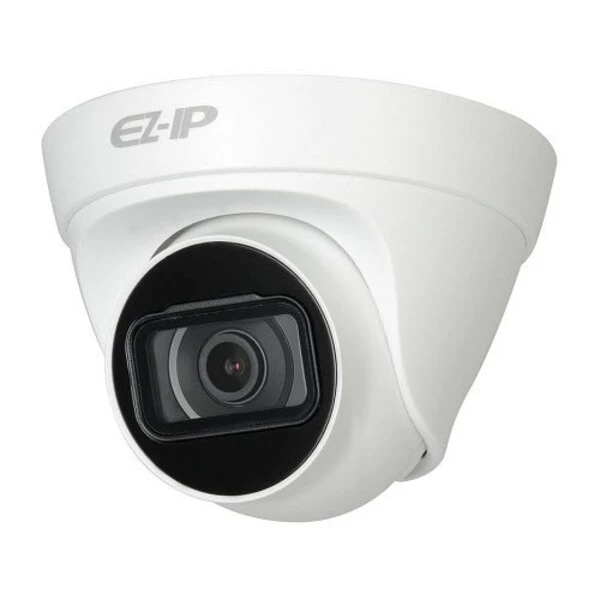

Dahua EZ-IPC-T1B20P 1080P

Part Number
EZ-IPC-T1B20P
Description

Dahua EZ-IPC-T1B20P 1080P

2MP IR Turret Network Camera

> 1/2.7” 2Megapixel progressive CMOS
> H.265+ & H.265 dual-stream encoding
> 20fps@1080P(1920×1080) & 25/30fps@1.3MP(1280×960)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens
> Max IR LEDs Length 30m
> IP67, PoE
1080 Full-HD 30m IR IP67

Description

Camera
Image Sensor 1/2.7” 2Megapixel progresive CMOS
Effective Pixels 1920(H) x1080(V)
RAM/ROM 64MB/16MB
Scanning System Progressive
Minimum Illumination 0.09Lux/F2.0(Color,1/3s,30IRE)



0.5Lux/F2.0(Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:115°/87.5°, V:60°/47°
Focus Control Fixed
Close Focus Distance 0.5m(1.64ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 43.5m(143ft) 17.4m(57ft) 8.7m(28.5ft) 4.3m(14ft)
3.6 mm 53.3m(175ft) 21.3m(70ft) 10.7m(35ft) 5.3m(17.4ft)
PTZ
Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/



720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240)

Frame Rate Main Stream: 1080P (1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H265:12K~5632K



H.264:32K ~8192K

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR

Remarks
Price:
Please enquire
Qty:


Add to cart Direct checkout + Add to wish list
